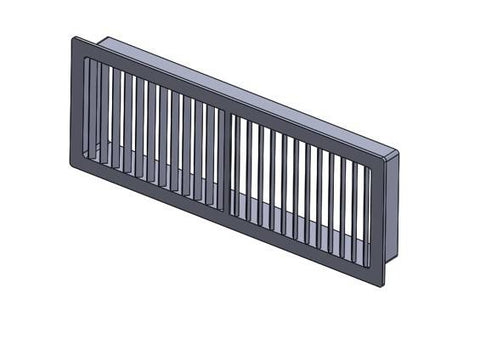

Vent, Rectangular

Description:

Rectangular vent can be used as a floor or wall register to direct air coming out of an air conditioning system. Customize insert to fit hole in floor or wall. Adjustable parameters are Length and Width of insert flange.

Unit of Measure:

mm

Approval Package:

This package includes everything you need to view and approve your custom product. It contains a 3D model (STEP), and full scale 2D files of three primary view angles (DXF).

Design Package:

This package includes everything you need to source and fabricate your custom product independently. It contains 3D and 2D fabrication files for all parts, detail part and assembly drawings with dimensions and tolerances, and a complete bill of materials.
